Orchestrator¶

The Orchestrator is an in-memory database that is launched prior to all other entities within an Experiment. The Orchestrator can be used to store and retrieve data during the course of an experiment and across multiple entities. In order to stream data into or receive data from the Orchestrator, one of the SmartSim clients (SmartRedis) has to be used within a Model.

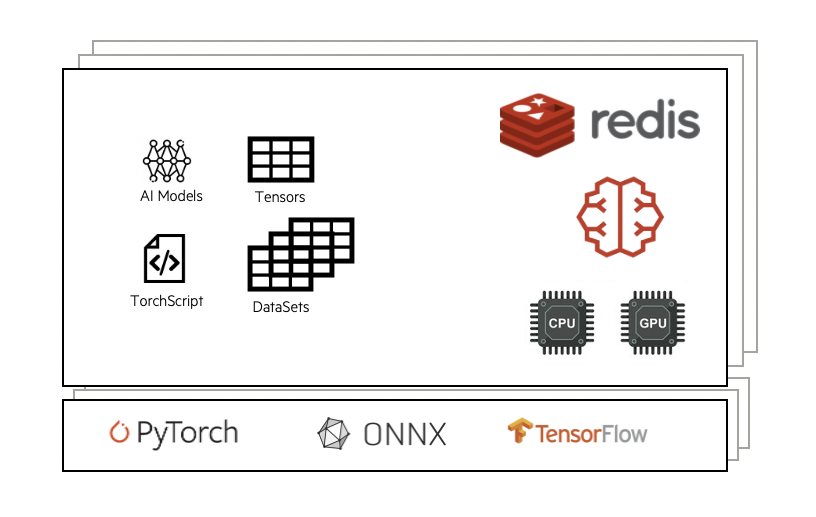

Combined with the SmartRedis clients, the Orchestrator is capable of hosting and executing AI models written in Python on CPU or GPU. The Orchestrator supports models written with TensorFlow, Pytorch, TensorFlow-Lite, or models saved in an ONNX format (e.g. sci-kit learn).

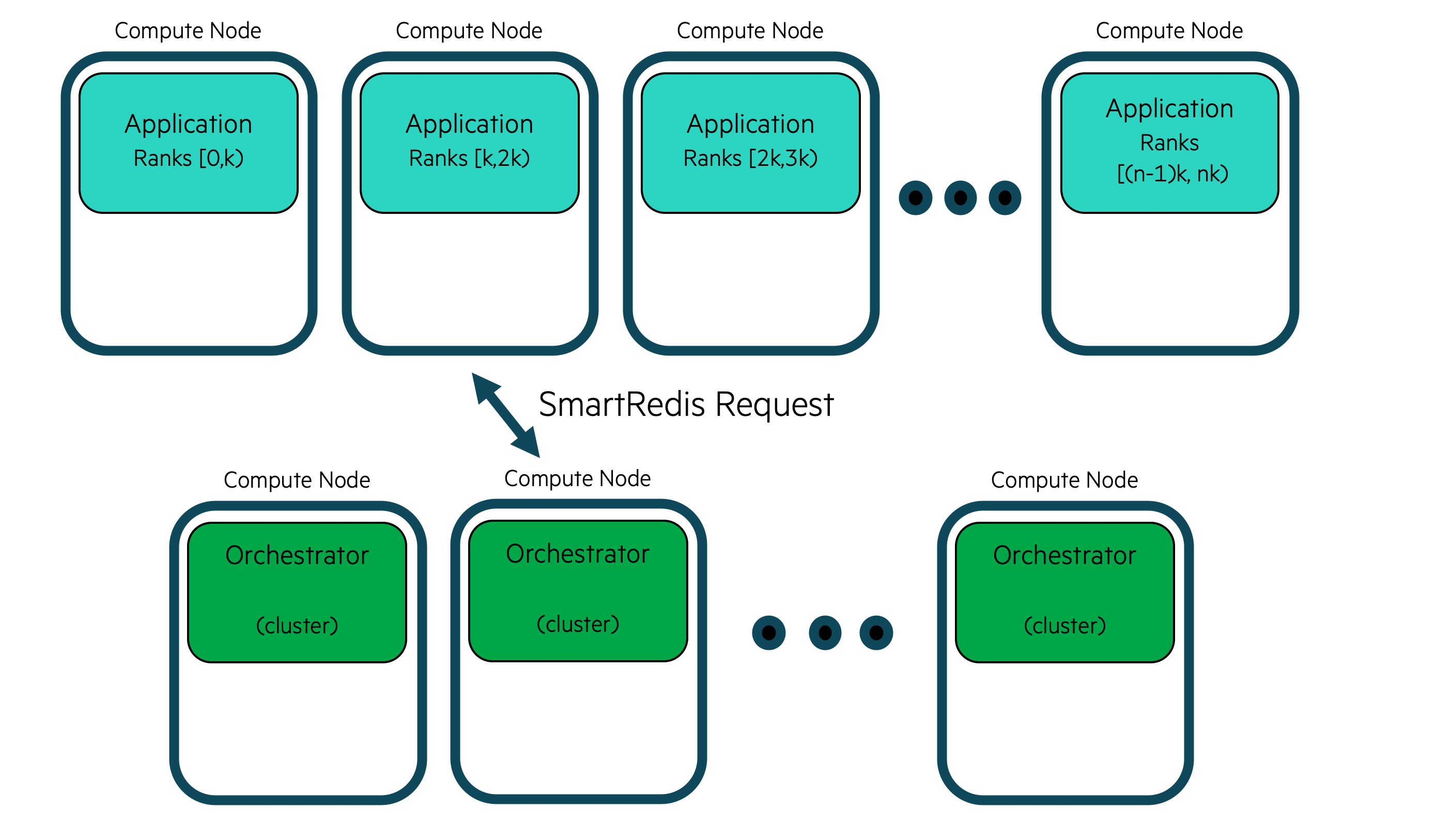

Cluster Orchestrator¶

The Orchestrator supports single node and distributed memory settings. This means that a single compute host can be used for the database or multiple by specifying db_nodes to be greater than 1.

With a clustered Orchestrator, multiple compute hosts memory can be used together to store data. As well, the CPU or GPU(s) where the Orchestrator is running can be used to execute the AI models, and Torchscript code on data stored within it.

Users do not need to know how the data is stored in a clustered configuration and can address the cluster with the SmartRedis clients like a single block of memory using simple put/get semantics in SmartRedis. SmartRedis will ensure that data is evenly distributed amoungst all nodes in the cluster.

The cluster deployment is optimal for high data throughput scenarios such as online analysis, training and processing.

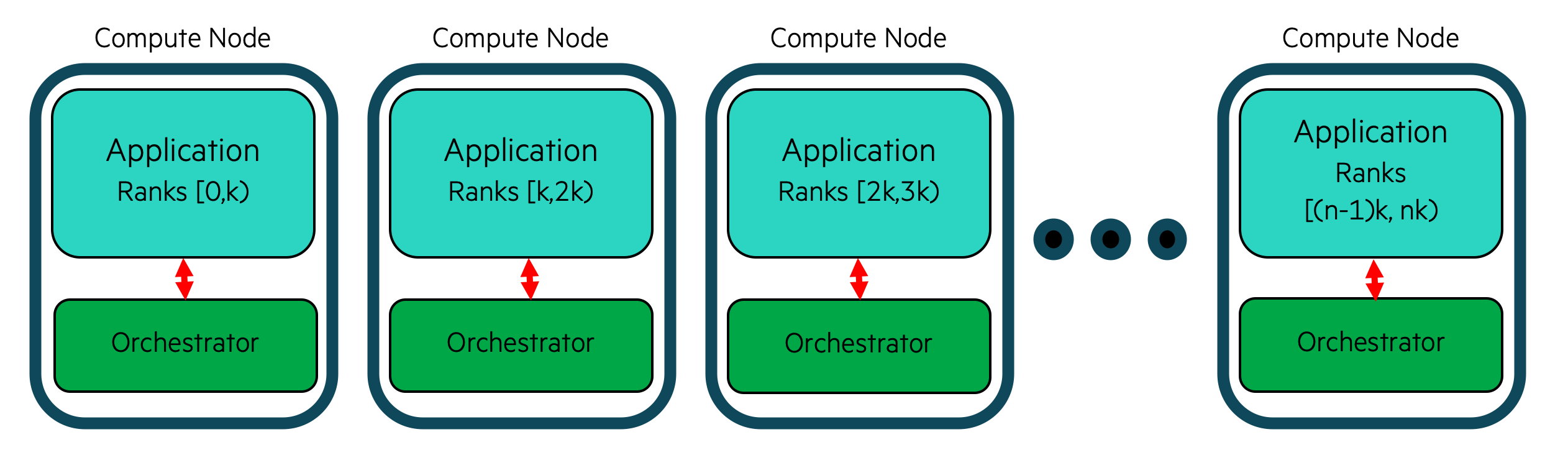

Co-located Orchestrator¶

A co-located Orchestrator is a special type of Orchestrator that is deployed on the same compute hosts an a Model instance defined by the user. In this deployment, the database is not connected together in a cluster and each shard of the database is addressed individually by the processes running on that compute host.

This deployment is designed for highly performant online inference scenarios where a distributed process (likely MPI processes) are performing inference with data local to each process.

This method is deemed locality based inference since data is local to each process and the Orchestrator is deployed locally on each compute host where the distributed application is running.

To create a co-located model, first, create a Model instance and then call the Model.colocate_db_tcp or Model.colocate_db_uds function.

Model.colocate_db_tcp(port=6379, ifname='lo', db_cpus=1, limit_app_cpus=True, debug=False, **kwargs)[source]

Colocate an Orchestrator instance with this Model over TCP/IP.

This method will initialize settings which add an unsharded database to this Model instance. Only this Model will be able to communicate with this colocated database by using the loopback TCP interface.

Extra parameters for the db can be passed through kwargs. This includes many performance, caching and inference settings.

ex. kwargs = {
    maxclients: 100000,
    threads_per_queue: 1,
    inter_op_threads: 1,
    intra_op_threads: 1,
    server_threads: 2 # keydb only
}

Generally these don’t need to be changed.

Parameters

port (int, optional) – port to use for orchestrator database, defaults to 6379
ifname (str, optional) – interface to use for orchestrator, defaults to “lo”
db_cpus (int, optional) – number of cpus to use for orchestrator, defaults to 1
limit_app_cpus (bool, optional) – whether to limit the number of cpus used by the app, defaults to True
debug (bool, optional) – launch Model with extra debug information about the co-located db
kwargs (dict, optional) – additional keyword arguments to pass to the orchestrator database

Model.colocate_db_uds(unix_socket='/tmp/redis.socket', socket_permissions=755, db_cpus=1, limit_app_cpus=True, debug=False, **kwargs)[source]

Colocate an Orchestrator instance with this Model over UDS.

This method will initialize settings which add an unsharded database to this Model instance. Only this Model will be able to communicate with this colocated database by using Unix Domain sockets.

Extra parameters for the db can be passed through kwargs. This includes many performance, caching and inference settings.

example_kwargs = {
    "maxclients": 100000,
    "threads_per_queue": 1,
    "inter_op_threads": 1,
    "intra_op_threads": 1,
    "server_threads": 2 # keydb only
}

Generally these don’t need to be changed.

Parameters

unix_socket (str, optional) – path to where the socket file will be created
socket_permissions (int, optional) – permissions for the socketfile
db_cpus (int, optional) – number of cpus to use for orchestrator, defaults to 1
limit_app_cpus (bool, optional) – whether to limit the number of cpus used by the app, defaults to True
debug (bool, optional) – launch Model with extra debug information about the co-located db
kwargs (dict, optional) – additional keyword arguments to pass to the orchestrator database

Here is an example of creating a simple model that is co-located with an Orchestrator deployment

from smartsim import Experiment
exp = Experiment("colo-test", launcher="auto")

colo_settings = exp.create_run_settings(exe="./some_mpi_app")

colo_model = exp.create_model("colocated_model", colo_settings)
colo_model.colocate_db_tcp(
        port=6780,              # database port
        db_cpus=1,              # cpus given to the database on each node
        debug=False             # include debug information (will be slower)
        limit_app_cpus=False,   # don't overscubscribe app with database cpus
        ifname=network_interface # specify network interface to use (i.e. "ib0")
)
exp.start(colo_model)

By default, SmartSim will attempt to make sure that the database and the application do not fight over resources by taking over the affinity mapping process locally on each node. This can be disabled by setting limit_app_cpus to False.

Redis¶

The Orchestrator is built on Redis. Largely, the job of the Orchestrator is to create a Python reference to a Redis deployment so that users can launch, monitor and stop a Redis deployment on workstations and HPC systems.

Redis was chosen for the Orchestrator because it resides in-memory, can be distributed on-node as well as across nodes, and provides low latency data access to many clients in parallel. The Redis ecosystem was a primary driver as the Redis module system provides APIs for languages, libraries, and techniques used in Data Science. In particular, the Orchestrator relies on RedisAI to provide access to Machine Learning runtimes.

At its core, Redis is a key-value store. This means that put/get semantics are used to send messages to and from the database. SmartRedis clients use a specific hashing algorithm, CRC16, to ensure that data is evenly distributed amongst all database nodes. Notably, a user is not required to know where (which database node) data or Datasets (see Dataset API) are stored as the SmartRedis clients will infer their location for the user.

KeyDB¶

KeyDB is a multi-threaded fork of Redis that can be swapped in as the database for the Orchestrator in SmartSim. KeyDB can be swapped in for Redis by setting the REDIS_PATH environment variable to point to the keydb-server binary.

A full example of configuring KeyDB to run in SmartSim is shown below

# build KeyDB
# see https://github.com/EQ-Alpha/KeyDB

# get KeyDB configuration file
wget https://github.com/CrayLabs/SmartSim/blob/d3d252b611c9ce9d9429ba6eeb71c15471a78f08/smartsim/_core/config/keydb.conf

export REDIS_PATH=/path/to/keydb-server
export REDIS_CONF=/path/to/keydb.conf

# run smartsim workload
