SmartSim helps automate the deployment of AI-enabled workflows on HPC systems. With SmartSim, users can describe and launch combinations of applications and AI/ML infrastructure to produce novel and scalable workflows. SmartSim supports launching these workflows on a diverse set of systems, including local environments such as Mac or Linux, as well as HPC job schedulers (e.g. Slurm, PBS Pro, and SGE).

The Experiment API is SmartSim’s top level API that provides users with methods for creating, combining, configuring, launching and monitoring entities in an AI-enabled workflow. More specifically, the Experiment API offers three customizable workflow components that are created and initialized via factory methods:

Orchestrator
Model
Ensemble

Settings are given to Model and Ensemble objects to provide parameters for how the job should be executed. The Experiment API offers two customizable Settings objects that are created via the factory methods:

Once a workflow component is initialized (e.g. Orchestrator, Model or Ensemble), a user has access to the associated entity API which supports configuring and retrieving the entities’ information:

There is no limit to the number of SmartSim entities a user can initialize within an Experiment.

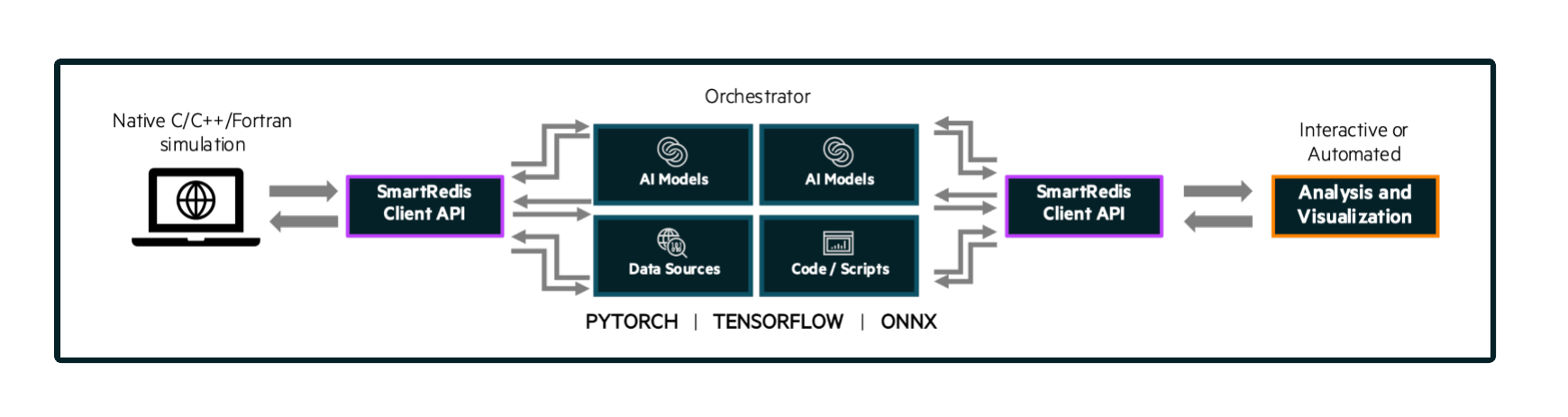

_images/Experiment.png — Sample `Experiment` showing a user application leveraging machine learning infrastructure launched by SmartSim and connected to online analysis and visualization via the in-memory `Orchestrator`.#

Find an example of the Experiment class and factory methods used within a workflow in the Example section of this page.

Launchers#

SmartSim supports launching AI-enabled workflows on a wide variety of systems, including locally on a Mac or Linux machine or on HPC machines with a job scheduler (e.g. Slurm, PBS Pro, and SGE). When creating a SmartSim Experiment, the user has the opportunity to specify the launcher type or defer to automatic launcher selection. Launcher selection determines how SmartSim translates entity configurations into system calls to launch, manage, and monitor. Currently, SmartSim supports 7 launcher options:

local [default]: for single-node, workstation, or laptop
slurm: for systems using the Slurm scheduler
pbs: for systems using the PBS Pro scheduler
pals: for systems using the PALS scheduler
sge: for systems using the SGE scheduler
dragon: if Dragon is installed in the current Python environment, see Dragon Install
auto: have SmartSim auto-detect the launcher to use (will not detect dragon)

The Dragon-based launcher can be run on PBS- or Slurm-based systems (MPI applications are supported only when Cray PMI or Cray PALS are available).

If the systems launcher cannot be found or no launcher argument is provided, the default value of “local” will be assigned which will start all Experiment launched entities on the localhost.

For examples specifying a launcher during Experiment initialization, navigate to the Experiment __init__ special method in the Experiment API docstring.

Entities#

Entities are SmartSim API objects that can be launched and managed on the compute system through the Experiment API. The SmartSim entities include:

Orchestrator
Model
Ensemble

While the Experiment object is intended to be instantiated once in the Python driver script, there is no limit to the number of SmartSim entities within the Experiment. In the following subsections, we define the general purpose of the three entities that can be created through the Experiment.

To create a reference to a newly instantiated entity object, use the associated Experiment.create_... factory method shown below.

Experiment API Entity Creation#
Factory Method	Example	Return Type
`create_database`	`orch = exp.create_database([port, db_nodes, ...])`	Orchestrator
`create_model`	`model = exp.create_model(name, run_settings)`	Model
`create_ensemble`	`ensemble = exp.create_ensemble(name[, params, ...])`	Ensemble

After initialization, each entity can be started, monitored, and stopped using the Experiment post-creation methods.

Interact with Entities During the Experiment#
Factory Method	Example	Desc
`start`	`exp.start(*args[, block, summary, ...])`	Launch an Entity
`stop`	`exp.stop(*args)`	Stop an Entity
`get_status`	`exp.get_status(*args)`	Retrieve Entity Status
`preview`	`exp.preview(*args, ...)`	Preview an Entity

Orchestrator#

The Orchestrator is an in-memory database built for a wide variety of AI-enabled workflows. The Orchestrator can be thought of as a general feature store for numerical data, ML models, and scripts. The Orchestrator is capable of performing inference and script evaluation using data in the feature store. Any SmartSim Model or Ensemble member can connect to the Orchestrator via the SmartRedis Client library to transmit data, execute ML models, and execute scripts.

SmartSim Offers Two Types of Orchestrator Deployments:

To create a standalone Orchestrator that does not share compute resources with other SmartSim entities, use the Experiment.create_database factory method which returns an Orchestrator object. To create a colocated Orchestrator that shares compute resources with a Model, use the Model.colocate_db_tcp or Model.colocate_db_uds member functions accessible after a Model object has been initialized. The functions instruct SmartSim to launch an Orchestrator on the application compute nodes. An Orchestrator object is not returned from a Model.colocate_db instruction, and subsequent interactions with the colocated Orchestrator are handled through the Model API.

SmartSim supports multi-database functionality, enabling an Experiment to have several concurrently launched Orchestrator(s). If there is a need to launch more than one Orchestrator, the Experiment.create_database and Model.colocate.. functions mandate the specification of a unique Orchestrator identifier, denoted by the db_identifier argument for each Orchestrator. The db_identifier is used in an application script by a SmartRedis Client to connect to a specific Orchestrator.

Model#

Model(s) represent a simulation model or any computational kernel, including applications, scripts, or generally, a program. They can interact with other SmartSim entities via data transmitted to/from SmartSim Orchestrator(s) using a SmartRedis Client.

A Model is created through the factory method: Experiment.create_model. Model(s) are initialized with RunSettings objects that specify how a Model should be launched by a workload manager (e.g., Slurm) and the compute resources required. Optionally, the user may also specify a BatchSettings object if the Model should be launched as a batch job on the WLM system. The create_model factory method returns an initialized Model object that gives you access to functions associated with the Model API.

A Model supports key features, including methods to:

Attach configuration files for use at Model runtime.
Colocate an Orchestrator to a SmartSim Model.
Load an ML model into the Orchestrator at Model runtime.
Load a TorchScript function into the Orchestrator at Model runtime.
Enable data collision prevention which allows for reuse of key names in different Model applications.

Visit the respective links for more information on each topic.

Ensemble#

In addition to a single Model, SmartSim allows users to create, configure, and launch an Ensemble of Model objects. Ensemble(s) can be given parameters and a permutation strategy that define how the Ensemble will create the underlying Model objects. Users may also manually create and append Model(s) to an Ensemble. For information and examples on Ensemble creation strategies, visit the Initialization section within the Ensemble documentation.

An Ensemble supports key features, including methods to:

Attach configuration files for use at Ensemble runtime.
Load an ML model (TF, TF-lite, PT, or ONNX) into the Orchestrator at Ensemble runtime.
Load a TorchScript function into the Orchestrator at Ensemble runtime.
Prevent data collisions within the Ensemble, which allows for reuse of application code.

Visit the respective links for more information on each topic.

File Structure#

When a user executes an Experiment script, it generates output folders in the system’s directory. By default, SmartSim creates a predefined file structure and assigns a path to each entity initialized. However, users have the flexibility to customize this according to workflow needs. Please refer to the respective default and configure sections below for more details.

Note

Files added for symlinking, copying, or configuration will not be organized into the generated directories unless Experiment.generate is invoked on the designated entity.

Default#

By default, an Experiment folder is created in your current working directory, using the specified name parameter during Experiment initialization. Each entity created by the Experiment generates an output folder under the Experiment directory, named after the entity. These folders hold .err and .out files, containing execution-related information.

For instance, consider the following Python script:

from smartsim import Experiment

exp = Experiment(name="experiment-example")
database = exp.create_database(port=6379, interface="ib0")
exp.start(database)
settings = exp.create_run_settings(exe="echo", exec_args="hello world")
model = exp.create_model(name="model-name", run_settings=settings)
ensemble = exp.create_ensemble(name="ensemble-name", run_settings=settings, replicas=2)
exp.start(model, ensemble)
exp.stop(database)

When executed, this script creates the following directory structure in your working directory:

experiment-example
├── orchestrator
│   ├── orchestrator_0.err
│   └── orchestrator_0.out
├── model-name
│   ├── model-name.err
│   └── model-name.out
└── ensemble-name
    ├── ensemble-name_0
    │   ├── ensemble-name_0.err
    │   └── ensemble-name_0.out
    ├── ensemble-name_1
    │   ├── ensemble-name_1.err
    │   └── ensemble-name_1.out

Configure#

Customizing the path of the Experiment and entity folders is possible by providing either an absolute or relative path to the path argument during initialization. When a relative path is provided, SmartSim executes the entity relative to the current working directory.

For instance, consider the following Python script:

from smartsim import Experiment

exp = Experiment(name="experiment-example", exp_path="absolute/path/to/experiment-folder")
database = exp.create_database(port=6379, interface="ib0")
exp.start(database)
settings = exp.create_run_settings(exe="echo", exec_args="hello world")
model = exp.create_model(name="model-name", run_settings=settings, path="./model-folder")
ensemble = exp.create_ensemble(name="ensemble-name", run_settings=settings, replicas=2, path="./ensemble-folder")
exp.start(model, ensemble)
exp.stop(database)

When executed, this script creates the following directory structure in your working directory:

├── experiment-folder
|   ├── orchestrator
|   │   ├── orchestrator_0.err
|   │   └── orchestrator_0.out
├── model-folder
│   ├── model-name.err
│   └── model-name.out
└── ensemble-folder
    ├── ensemble-name_0
    │   ├── ensemble-name_0.err
    │   └── ensemble-name_0.out
    ├── ensemble-name_1
    │   ├── ensemble-name_1.err
    │   └── ensemble-name_1.out

Example#

In the following section, we provide an example of using SmartSim to automate the deployment of an HPC workflow consisting of a Model and standalone Orchestrator. The example demonstrates:

Initializing

a workflow (Experiment)
an in-memory database (standalone Orchestrator)
an application (Model)

Generating

the Orchestrator output directory
the Model output directory

Previewing

the Orchestrator contents
the Model contents

Starting

an in-memory database (standalone Orchestrator)
an application (Model)

Stopping

an in-memory database (standalone Orchestrator)

The example source code is available in the dropdown below for convenient execution and customization.

Initializing#

To create a workflow, initialize an Experiment object at the start of the Python driver script. This involves specifying a name and the system launcher that will execute all entities. Set the launcher argument to auto to instruct SmartSim to attempt to find the machines WLM.

from smartsim import Experiment
from smartsim._core.control.previewrenderer import Verbosity
from smartsim.log import get_logger

# Initialize an Experiment
exp = Experiment("example-experiment", launcher="auto")
# Initialize a SmartSim logger
smartsim_logger = get_logger("logger")

We also initialize a SmartSim logger. We will use the logger to log the Experiment summary.

Next, launch an in-memory database, referred to as an Orchestrator. To initialize an Orchestrator object, use the Experiment.create_database factory method. Create a multi-sharded Orchestrator by setting the argument db_nodes to three. SmartSim will assign a port to the Orchestrator and attempt to detect your machine’s network interface if not provided.

# Initialize an Orchestrator
standalone_database = exp.create_database(db_nodes=3, port=6379, interface="ib0")

Before invoking the factory method to create a Model, first create a RunSettings object. RunSettings hold the information needed to execute the Model on the machine. The RunSettings object is initialized using the Experiment.create_run_settings method. Specify the executable to run and arguments to pass to the executable.

The example Model is a simple Hello World program that echos Hello World to stdout.

# Initialize the Model RunSettings
settings = exp.create_run_settings("echo", exe_args="Hello World")

After creating the RunSettings object, initialize the Model object by passing the name and settings to create_model.

# Initialize the Model
model = exp.create_model("hello_world", settings)

Generating#

Next we generate the file structure for the Experiment. A call to Experiment.generate instructs SmartSim to create directories within the Experiment folder for each instance passed in. We organize the Orchestrator and Model output files within the Experiment folder by passing the Orchestrator and Model instances to exp.generate:

# Generate the output directory
exp.generate(standalone_database, model, overwrite=True)

Overwrite=True instructs SmartSim to overwrite entity contents if files and subdirectories already exist within the Experiment directory.

Note

If files or folders are attached to a Model or Ensemble members through Model.attach_generator_files or Ensemble.attach_generator_files, the attached files or directories will be symlinked, copied, or configured and written into the created directory for that instance.

The Experiment.generate call places the .err and .out log files in the entity subdirectories within the main Experiment directory.

Previewing#

Optionally, users can preview an Experiment entity. The Experiment.preview method displays the entity summaries during runtime to offer additional insight into the launch details. Any instance of a Model, Ensemble, or Orchestrator created by the Experiment can be passed as an argument to the preview method. Additionally, users may specify the name of a file to write preview data to via the output_filename argument, as well as the text format through the output_format argument. Users can also specify how verbose the preview is via the verbosity_level argument.

The following options are available when configuring preview:

verbosity_level=”info” instructs preview to display user-defined fields and entities.
verbosity_level=”debug” instructs preview to display user-defined field and entities and auto-generated fields.
verbosity_level=”developer” instructs preview to display user-defined field and entities, auto-generated fields, and run commands.
output_format=”plain_text” sets the output format. The only accepted output format is ‘plain_text’.
output_filename=”test_name.txt” specifies name of file and extension to write preview data to. If no output filename is set, the preview will be output to stdout.

In the example below, we preview the Orchestrator and Model entities by passing their instances to Experiment.preview:

# Preview the experiment
exp.preview(standalone_database, model, verbosity_level=Verbosity.DEBUG)

When executed, the preview logs the following in stdout:

=== Experiment Overview ===

  Experiment Name: example-experiment
    Experiment Path: absolute/path/to/SmartSim/example-experiment
    Launcher: local

=== Entity Preview ===

  == Orchestrators ==

    = Database Identifier: orchestrator =
        Path: absolute/path/to/SmartSim/example-experiment/orchestrator
        Shards: 1
        TCP/IP Port(s):
          6379
        Network Interface: ib0
        Type: redis
        Executable: absolute/path/to/SmartSim/smartsim/_core/bin/redis-server

  == Models ==

    = Model Name: hello_world =
        Path: absolute/path/to/SmartSim/example-experiment/hello_world
        Executable: /bin/echo
        Executable Arguments:
          Hello
          World
        Client Configuration:
          Database Identifier: orchestrator
            Database Backend: redis
            TCP/IP Port(s):
              6379
            Type: Standalone
          Outgoing Key Collision Prevention (Key Prefixing):
            Tensors: Off
            Datasets: Off
            ML Models/Torch Scripts: Off
            Aggregation Lists: Off

Starting#

Next launch the components of the Experiment (Orchestrator and Model). To do so, use the Experiment.start factory method and pass in the previous Orchestrator and Model instances.

# Launch the Orchestrator then Model instance
exp.start(standalone_database, model)

Stopping#

Lastly, to clean up the Experiment, tear down the launched Orchestrator using the Experiment.stop factory method.

# Clobber the Orchestrator
exp.stop(standalone_database)

Notice that we use the Experiment.summary function to print the summary of the workflow.

When you run the experiment, the following output will appear:

|    | Name           | Entity-Type   | JobID       | RunID   | Time    | Status    | Returncode   |
|----|----------------|---------------|-------------|---------|---------|-----------|--------------|
| 0  | hello_world    | Model         | 1778304.4   | 0       | 10.0657 | Completed | 0            |
| 1  | orchestrator_0 | DBNode        | 1778304.3+2 | 0       | 43.4797 | Cancelled | 0            |

Note

Failure to tear down the Orchestrator at the end of an Experiment may lead to Orchestrator launch failures if another Experiment is started on the same node.
